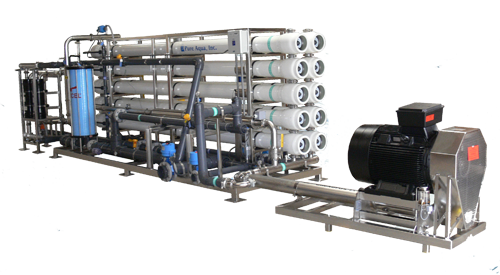

Industrial Sea Water Desalination Systems

8,000 to 265,000 GPD / 30 to 1,893 M3/D

Pure Aqua, Inc. manufactures a full line of seawater desalinators designed for heavy or continuous duty service in marine applications where quality and dependable performance are key. Our SWI series is available with capacities ranging from 8,000 GPD to 265,000 GPD

Standard Features

  • Heavy duty 5 micron sement prefilter
  • Premium quality nickel-brass-bronze or sea water
  • resistant SS pump, protected by a precision
  • engineered pulsation-dampener
  • High quality, glycerin-filled 316 SS pressure gauges
  • Product & Reject flow meters
  • TFC spiral wound membranes
  • FRP membrane housings
  • 460V/3Ph/60Hz
  • Low & High pressure switches
  • Permeate TDS monitor
  • PVC low pressure piping
  • Stainless steel high pressure piping
  • Stainless steel throttling valve for reject stream
  • Automatic feed shut off valve
  • Energy recovery on model: SW-63K-4480 and larger
  • Epoxy coated steel frame
  • Microprocessor/PLC based control panel

Available Options

  • Booster pump
  • 380-415V/3Ph/50Hz power supply
  • Product tank level switch
  • pH meter and sensor
  • Hour meter
  • Cleaning skid
  • Oil/water separator
  • 50 micron bag filter for open intake
  • Prefilter pressure gauges
  • Carbon prefilter
  • Multimedia prefilter
  • Pre or post UV sterilizer
  • Custom designed units
  • Export crating
  • Stainless steel discharge pulsationdampener
  • Chemical dosing units

Systems Applications

  • Cargo Ships
  • Oil Tankers
  • Work Boats
  • Hotels & Resorts
  • Villages & Citie
  • Seaside Villas
  • Coastal Developments
  • Island-Based Businesses
  • Fish Processing Plants
  • Seaside Work Sites

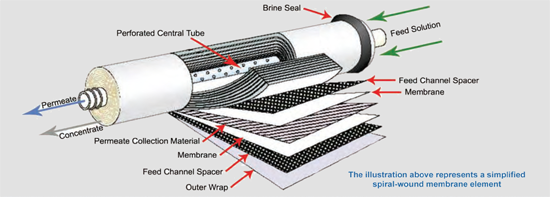

How the Membrane System Works

The spiral membrane is constructed of one or more membrane envelopes wound around a perforated central tube. The permeate passes through the membrane into the envelope and spirals inward to the central tube for collection.

Operation Specifications

  • Feed water temperature = 95º F Max.
  • Feed water pressure = 40 to 80 psi
  • Turbidity should be removed
  • Maximum operating pressure: 1000 psi
  • Iron tolerance: 0.05 ppm Max.
  • Feed water TDS: 42,000 ppm, or higher as an option
  • pH range: 3-11
  • Chlorine and other oxidants should be removed
  • No bacteriological or organic content
  • Membrane rejection: 95-99%
Model No. Capacity at 42,000ppm Qty of 8" Membranes Feed Water TDS HP Dimensions Weight Lbs
M3/ Day GPD
Industrial Seawater Reverse Osmosis Systems
SW-8.0K-1280 30 8,000 2 42,000 PPM 15 195"X42"X72" 2,600
SW-12K-1380 45 12,000 3 42,000 PPM 20 195"X42"X72" 2,600
SW-16K-1480 61 16,000 4 42,000 PPM 25 195"X60"X72" 2,700
SW-24K-2380 91 24,000 6 42,000 PPM 40 195"X60"X72" 3,200
SW-32K-2480 121 32,000 8 42,000 PPM 60 195"X72"X72" 4,200
SW-48K-2680 182 48,000 12 42,000 PPM 75 195"X72"X72" 5,600
SW-64K-4480 242 64,000 16 42,000 PPM 60 195"X72"X72" 6,500
SW-72K-3680 273 72,000 18 42,000 PPM 60 368"X50"X80" 12,000
SW-96K-4680 363 96,000 24 42,000 PPM 85 368"X50"X80" 13,000
SW-112K-4780 424 112,000 28 42,000 PPM 100 475"X65"X80" 14,000
SW-136K-5680 515 136,000 34 42,000 PPM 110 475"X65"X80" 15,000
SW-168K-6780 636 168,000 42 42,000 PPM 120 475"X65"X80" 17,500
SW-196K-7780 742 196,000 49 42,000 PPM 130 475"X65"X80" 17,500
SW-224K-8780 848 224,000 56 42,000 PPM 160 475"X65"X79" 17,200
SW-252K-9780 954 252,000 63 42,000 PPM 175 475"X65"X79" 18,000
SW-280K-10780 1060 280,000 70 42,000 PPM 190 475"X65"X79" 19,000
SW-317K-12780 1200 317,000 84 42,000 PPM 190 475"X65"X80" 21,000
SW-420K-15780 1590 420,000 105 42,000 PPM 290 475"X65"X80" 21,000
SW-500K-18780 1893 500,000 126 42,000 PPM 320 475"X65"X81" 22,000

All specifications are subject to change without notice

We also supply Custom Engineered Solutions the following:

  • Multi-Media Pretreatment
  • Carbon Pretreatment
  • Water Conditioning
  • Chemical Metering Pumps
  • Ultra-Violet Sterilizers
  • Ozone Sterilization
