Industrial Ultra Filtration Systems

10,000 to 1,000,000 GPD / 38 to 3,785 M3/D

Ultra Filtration is a pressure driven membrane separation process that removes suspended or particulate matter (including colloids & silt) from water. Ultra Filtration is more reliable than conventional multimedia Filtration that removes approx. 10 micron or larger matter where a UF membrane pore size ranges from 0.01 to 0.10 micron. Ultra Filtration also efficiently removes bacteria and most viruses.

Pure Aqua supplies a full line of standard and fully customizable Ultra Filtration systems, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions

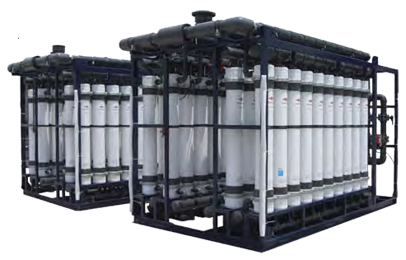

Model Shown Above:
UF-10K-1, skid mounted system with sediment traps, multimedia filter, cartridge filter, pressure tank and UV sterilizer. Standard instrumentation with microprocessor control panel

Standard Features

  • UF modules (PVC)
  • Stainless steel backwash pump
  • 150 um flushable screen
  • Schedule 80 PVC piping
  • 460V/3Ph/60Hz power supply
  • Microprocessor control panel
  • Motor starters
  • NEMA 12 enclosure
  • Differential pressure switch
  • Liquid filled pressure gauges (panel mount)
  • Electrically actuated valves
  • Flow meter

Available Options

  • Chemically Enhanced Backwash (CEB)
  • Feed/backwash oxidizer (dosing system)
  • Membrane cleaning skid (CIP)
  • 380-415V/3Ph/50Hz power supply
  • Online turbidity monitor
  • Stainless steel multi-stage feed pump
  • Feed pump VFD
  • PLC + HMI
  • Filtrate (backwash) tank (HDPE)
  • Pressure Transducers
  • Blower (for backwash)
  • Duplex 2205 screen (versus SS 316)

Systems Applications

  • RO pretreatment
  • Drinking water treatment
  • Tertiary wastewater or grey water treatment
  • Process separation or recovery


How the Ultra Filtration System Works

The figure below is a typical process flow diagram for a UF system. Ultra filtration systems eliminate the need for clarifiers and multimedia filters. Standard design is based on a UF module with outside-in flow configuration which allows for less plugging, higher solids loading, higher flow area and easy cleaning. The primary flow design is dead-end filtration. Air scouring is used to enhance backwash.


Operation Specifications

  • Turbidity < 50 max. 300 NTU
  • TSS < 50 max. < 100 mg/L
  • TOC < 10 max. < 40 mg/L
  • COD max. < 60 mg/L
  • pH 6-9 (2-11 cleaning)
  • Temperature 25°C (max. 40°C)
  • Cl2 0.5 ppm (2,000 cleaning)
  • Backwash frequency 20-60 minutes

Model No.  Capacity - Surface Water Flux at 25 GFD Capacity - Sea Water Flux at 35 GFD Capacity - Ground Water Flux at 53 GFD Qty of UF Modules
GPD M3/ Day GPD M3/ Day GPD M3/ Day
UF-10K-1 10080 38 15840 60 25920 98 1
UF-20K-2 20160 76 30956 117 50655 192 2
UF-40K-4 40320 153 63541 241 103976 394 4
UF-60K-6 60480 229 94497 358 154631 586 6
UF-80K-8 80640 305 127082 481 207952 788 8
UF-100K-10 100800 382 158038 599 258608 980 10
UF-120K-12 120960 458 190623 722 311929 1,182 12
UF-161K-16 161280 611 254164 963 415905 1,575 16
UF-201K-20 201600 764 316076 1,197 517215 1,959 20
UF-262K-26 262080 993 412202 1,561 674512 2,555 26
UF-302K-30 302400 1,145 475743 1,802 778489 2,949 30
UF-403K-40 403200 1,527 633781 2,401 1037096 3,928 40

All specifications are subject to change without notice

We also supply Custom Engineered Solutions the following:
  • Multi-Media Pretreatment
  • Carbon Pretreatment
  • Water Conditioning
  • Chemical Metering Pumps
  • Ultra-Violet Sterilizers
  • Ozone Sterilization


Download PDF Brochure
