Spectra Aquifer Expedition

Efficient. Rugged. Essential.



The New Aquifer Expedition is configured for Military, Disaster Relief and Expeditionary use. The Expedition is powered by a rugged submersible 24V pump that delivers the feed water to the Reverse Osmosis system, eliminating problems with water delivery from remote sources. Spectra Watermakers has developed the simplest, quietest, most energy efficient, man-portable seawater RO system imaginable. Spectra's rugged Reverse Osmosis watermakers are engineered for the most austere condi-tions in the most re-mote areas where pure drinking water and mobility are vi-tal. The Expedition system makes up to 200 gallons of puri-fied fresh drinking water every day, in almost any climate, from nearly any water source!

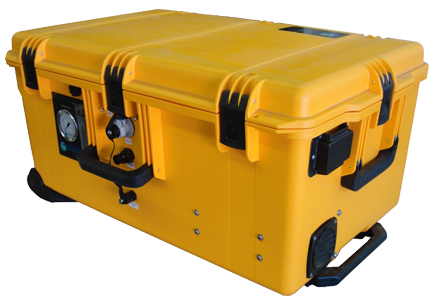

The system is encased in a military grade, shock resistant, non-corrosive case and pow-ered by any 24V DC source. This system is so efficient that it can be run from a vehicle's electrical system, a solar panel, or battery bank.
Dependable under the most ex-treme conditions, the Spectra High-Pressure Intensifier will operate flawlessly throughout a wide range of temperatures and water conditions, without any adjustments or loss of product water output. With no electrical equip-ment inside the case, and constructed almost entirely of high density composites, it is corrosion resistant, whisper quiet, and extremely reliable. All this, while producing up to 8.5 Gallons of pure drinking wa-ter per hour on an incredible 4.5 Amps!

System Features

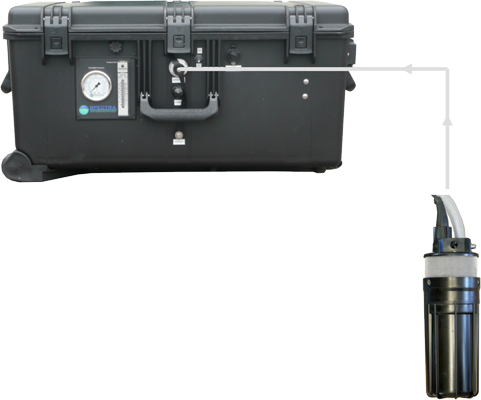

Every Expedition comes complete and ready to run. It includes a factory-mounted Spectra High Pressure Intensifier, a 21-inch membrane in a Spectra pressure vessel assembly and submersible diaphragm feed water pump capable of delivering water 10 feet up a cliff and 50 feet away! The system is enclosed in a corrosion proof, impact resistant case with a feed water pressure gauge, product water flow meter, and hand held salinity monitor all as standard features.

  • Submersible well pump with 25' of hose, wir-ing harness and quick disconnect fitting. (50' option)
  • 10' of brine discharge hose
  • 15' of product water tubing
  • 2 spare 5 micron filters
  • Spectra SC-1 storage chemical
  • Hand held salinity monitor





Specifications Expedition-150 Expedition-200
Produce Fresh Water
6.25 GPH (23 LPH)
8.3 GPH (31.5 LPH)
Treat Water
Seawater or Brackish
Cold Water Source below 50 Degrees F (10C)
yes
No
Power Consumption
Approx. 108W
Approx. 108 W
Feed water recovery
7%
10%
Salt rejection
99.4% minimum
99.4%
Feed flow
1.5 GPM (5.65 LPM)
Feed Pump
Shurflo 9300 high head sub-mersible well pump
Membranes 2.5"x21" Seawater RO
1ea.
Clark pump
constructed of engineering plastics and composites
Filters
1ea. 5 micron
Case Color Army green, Black, Custom colors require volume orders
System Weight & Dimensions 32" L x 21"W x 15.5" H
Weight 75 Lbs
812mm x 533mm x 394mm
Weight 34 Kg
System Operation Voltage
24VDC
