Spectra LB-10,000F

With Pearson Pump Technology

The LB -10,000 is an extremely energy efficient reverse osmosis desalination plant designed for stationary or industrial applications. The unit can desalinate seawater water using just a fraction of the energy of conventional small plants. In fact, the Spectra LB machines are so efficient they are often powered from renewable energy. This unit is built using Spectra's revolutionary and proprietary new Spectra SP-20 Pearson pump. The plants are constructed with a rugged 304 stainless steel frame.

The LB-10,000 is available in two control configurations, either a simple analog system with a minimum of automation and cost, or a microprocessor based control system for fully automated control and monitoring. Water piping connections are made with flex hose and "camlock" fittings for ease of installation and service.

The Spectra Pearson Pump is a breakthrough pump design. This unique high pressure pump combines feed stream pumping and energy recovery into a single unit. The "Energy Recovery" feature of the Pearson Pump takes the energy entrained in the brine reject stream from the RO membranes and recaptures it, dramatically increasing the overall efficiency. The system does not require continuous monitoring and pressure adjustment as it stays inherently in balance at all times, providing a constant product flow and recovery ratio. The product flow can be controlled via the variable speed drive to the motor.

Having a fixed recovery ratio is critical for brackish water applications as it prevents operators from tampering with the recovery ratios and damaging the membranes. The Spectra Pearson Pump is manufactured from engineered composites and super duplex stainless steel for extreme corrosion resistance.

System Features:

  • The SpectraPearson Pump is the most energy efficient desalination pump of its size on the planet!
  • The Spectra Pearson Pump is integrated with Spectra's exclusive oil filtration system for extended service periods.
  • Available with a microprocessor based controller with keypad display to monitor and control all functions. Readouts include digital based flow and pressure as well as filter condition and operational hours. A conductivity
    controller monitors product water quality and automatically rejects poor product water on startup. A high quality diversion valve with manual bypass is standard. Tank switches can be integrated to automatically start and stop the system.
  • Motor speed control with external heat sink capable of operating in extreme environments.
  • Fixed recovery ratio prevents operator from tampering with recovery.
  • Service ports integrated into the system for ease of maintenance.
  • 5 micron Spinring™Industrial prefilter set protects the membranes. Water delivery and pretreatment is site specific and will be engineered for your particular application.
  • Multimedia filters and Ultra filtration options are available from Spectra.
  • Rugged 304 Stainless steel welded frame.
  • Integral tank for freshwater flushing of the membranes or cleaning in place included.

Technical Specifictations:

Product Output 420 GPH / 1600 LPH Seawater Desalination
System Voltage Available in 48VDC, 240VAC 50/60 Hz
Power Consumption 8.4Kw.Hr / 1,000 Gallons or 2.2 KW.Hr./M^3
Dimensions 67"L x 46" W x 56" H or 170 cm L x 116 cm W x 143 cm H
Weight Approx. 1600 LB / 725 Kg
Feed Water Recovery 35%
Minimum Salt Rejection 99.4%
Feed Flow 20 GPM / 76 LPM
Feed Pressure 20 PSI / 1.4 Bar
Membrane 3 ea. of HRLE 8" x 40" SWRO membrane
High Pressure Pump Construction Glass epoxy composites and Super duplex SS.
Inlet Prefilter (20" Commercial filter) 2 ea 20 micron & 2 ea 5 micron

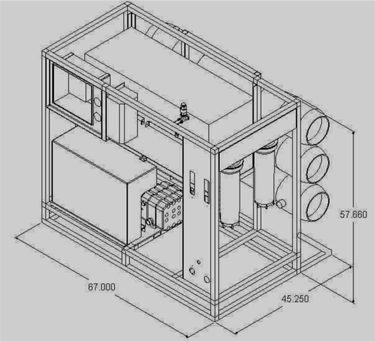

System Dimensions:

Spectrawatermakers engineers and builds a full line of marine, mobile and land based desalination systems for sea and brackish water. Many of our systems are custom built to meet our customers applications.


Download PDF Brochure
